Specifications
Battery: AAA1.5V * 3pcs
Standby Current: 20uA
Standby Time: 1 years
Standard Mode: 5 months (15 times/day) trigger one time every two minutes
Eco Mode: 5 months (15 times/day) trigger one time every four minutes
Sensitivity Distance：5m
Sensitive Angle: 120°
Wireless Type: 2.4GHz
Protocol: IEEE 802.11b/g/n
Wireless Range: 45m
Operating Temperature: 0℃～ 40℃ (32°F～104°F)
Operating Humidity: 20% ～ 85%
Storage Temperature: 0℃ ～ 60℃ (32°F ～140°F)
Storage Humidity: 0% ～ 90%
The MS-10 is a smart hardware with built-in wireless WiFi module and infrared body sensor. When a person or a pet enters the sensing range, a change in the infrared spectrum of the human body is detected, thereby triggering the sensor to initiate the associated intelligence through the preset intelligent scene.
The device can open the smart light bulb or the intelligent sound and light alarm alarm, etc., and also push the event notification to the mobile phone APP bound to the device.
It can be used to build intelligent automation or security systems in homes or public areas.
Receiving alert from smartphone
If a person or a large pet is detected to invade the sensor, remotely push the real-time alarm to the mobile APP to keep abreast of the situation at home.
Activate more funs with other smart devices
By creating smart scenes to associate with other smart devices, when the infrared detector senses intrusion, it is possible to intelligently switch these associated devices.
Such as smart light bulbs, sound and light alarms, or window openers, electric curtains, etc.
Battery operated, easy making ready to use
MS-10 hardware and software are designed by the industry's top team, ultra-low power consumption, 3 x AAA batteries powered, no wiring required.

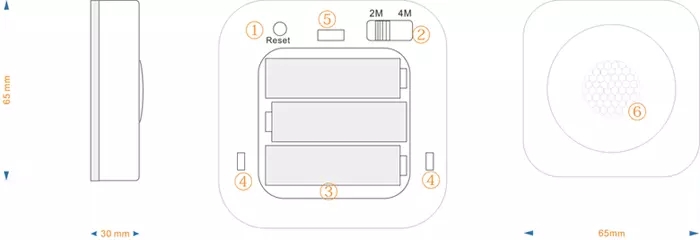

① : Reset button, long and hold press to enter network pairing mode
② : Working mode selection switch
③ : Battery cabinet with 3 x AAA batteries
④⑤ : Mounting bracket holes
⑥ : Infrared sensor fresnel lens
